About New Dimensions
Discover a new era of texture with New Dimensions – a large-format ceramic wall tile collection defined by sculptural relief and quiet elegance. Each piece invites touch: from flowing bevels to rhythmic grooves, these 12″x36″ tiles transform surfaces into tactile sensations. Ideal for statement walls in bathrooms or common areas, kitchen backsplashes and beyond – New Dimensions brings depth, elegance, and a truly immersive surface experience.

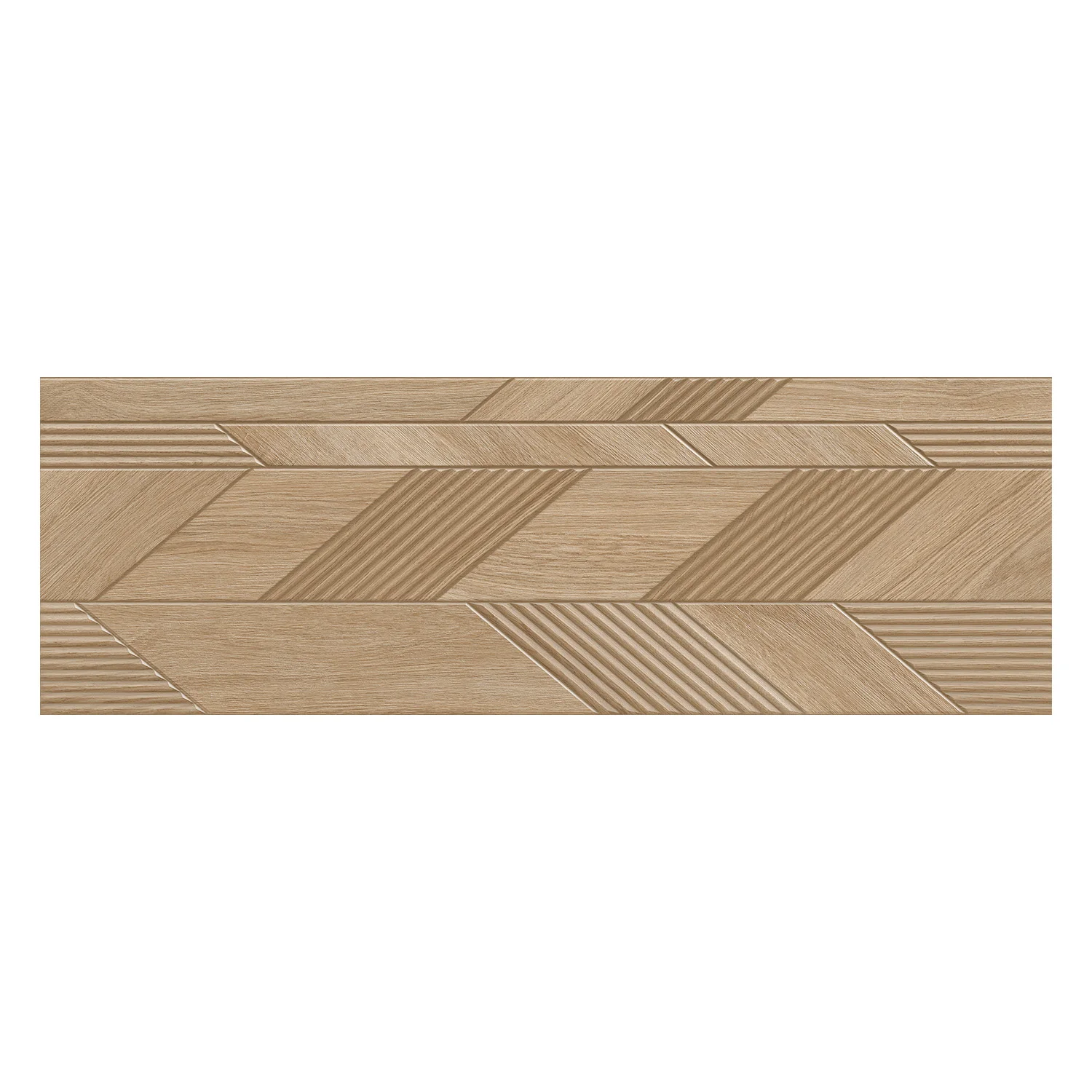

Dark Oak Chevron

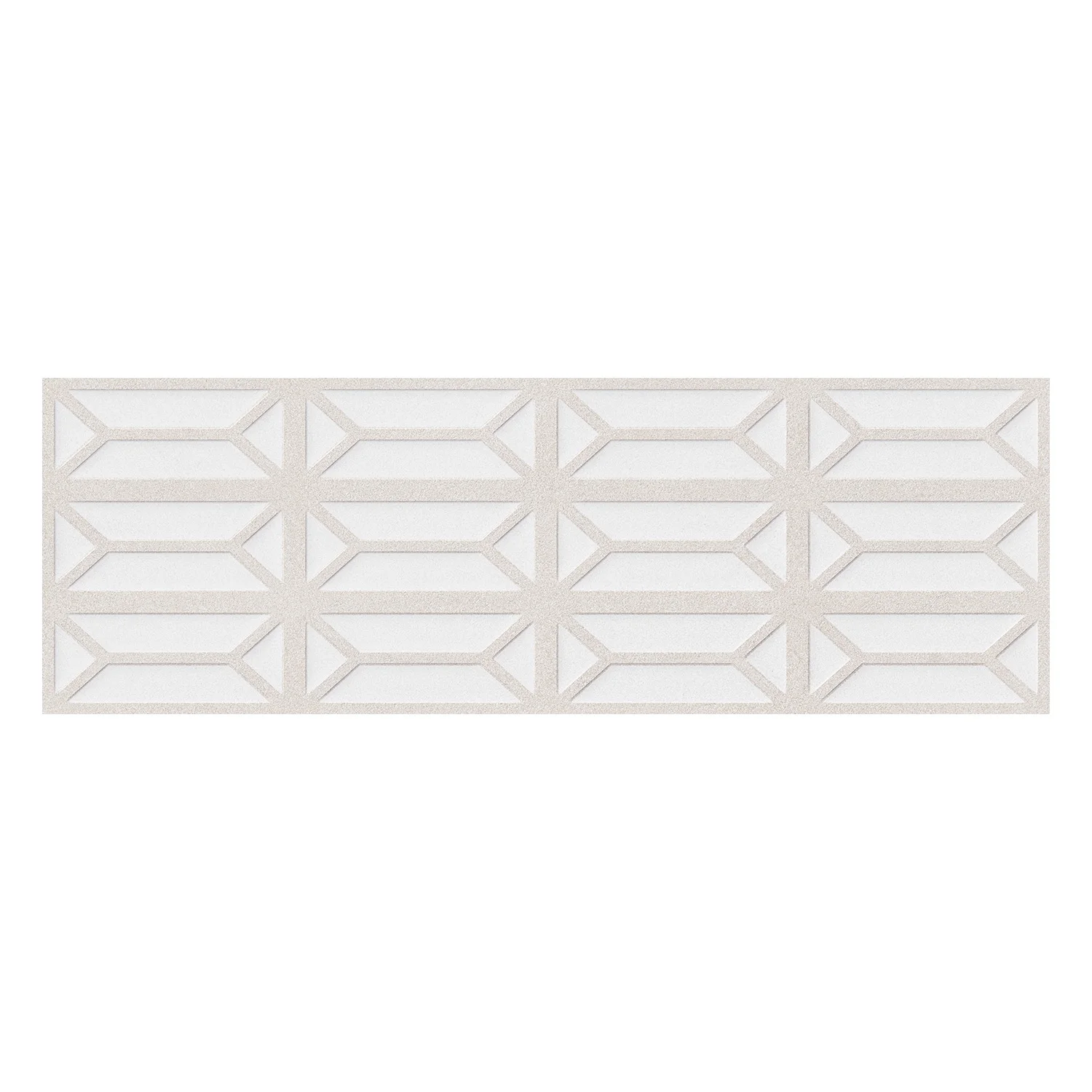

Ivory Bevel

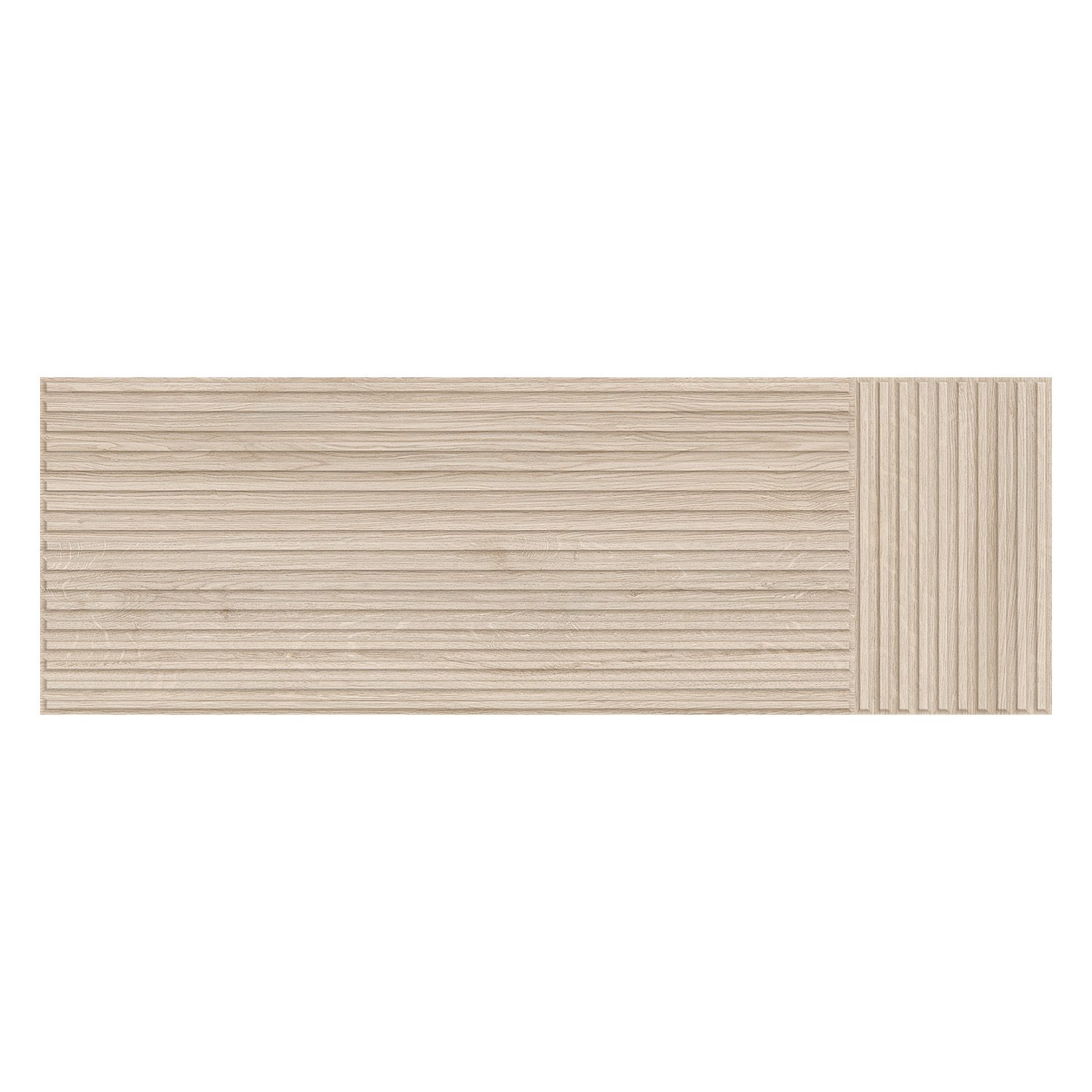

Light Oak Linear

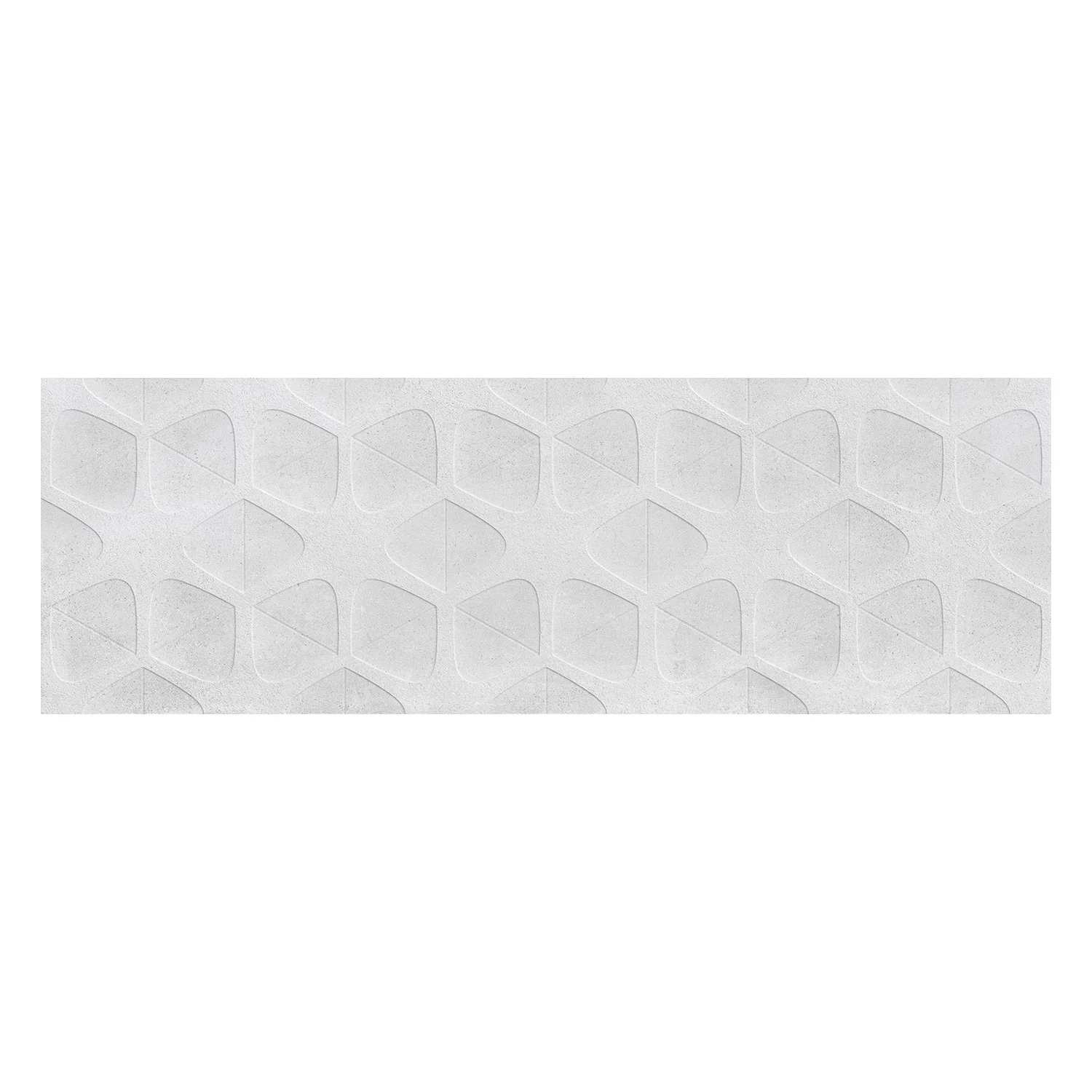

Moon Concave

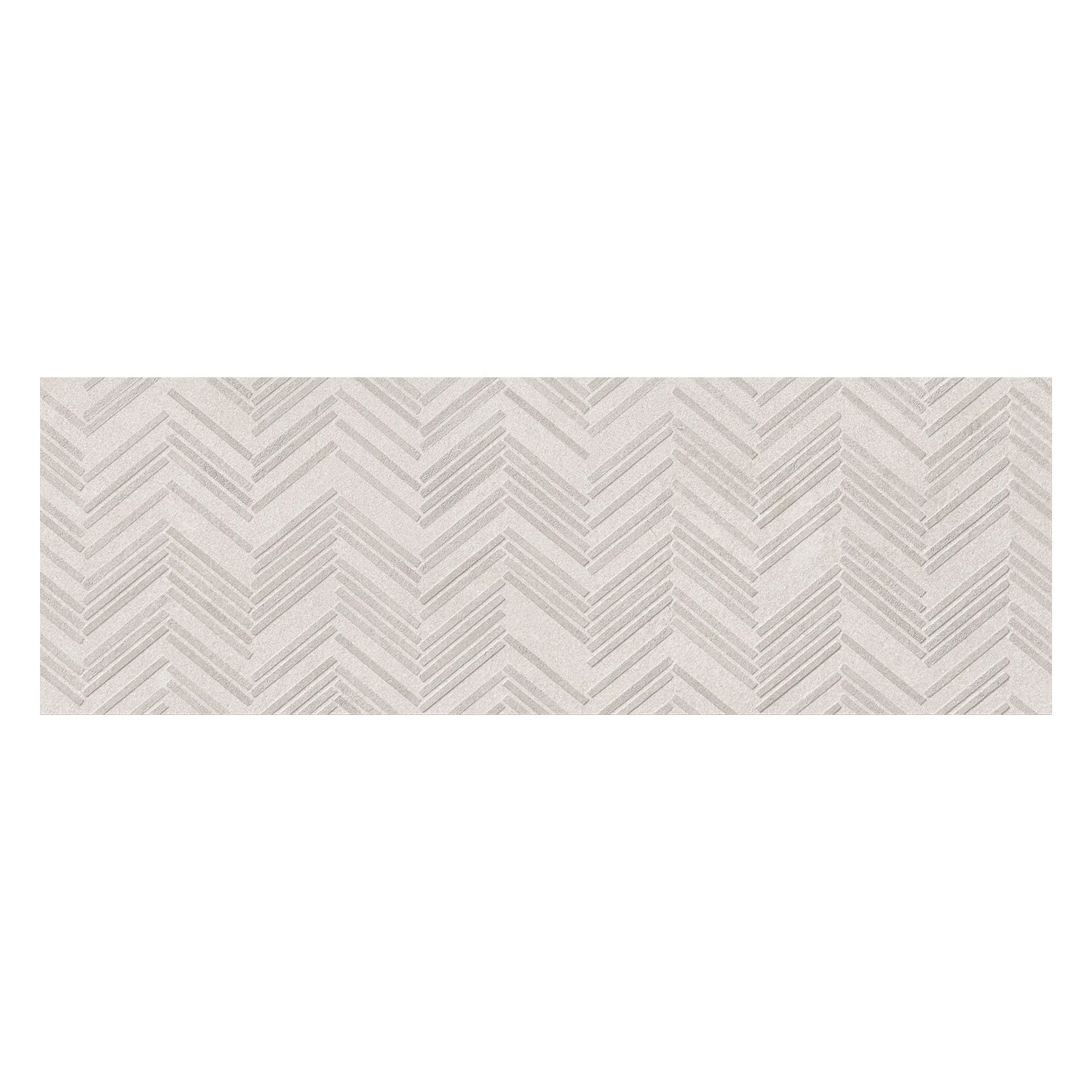

Ivory Herringbone

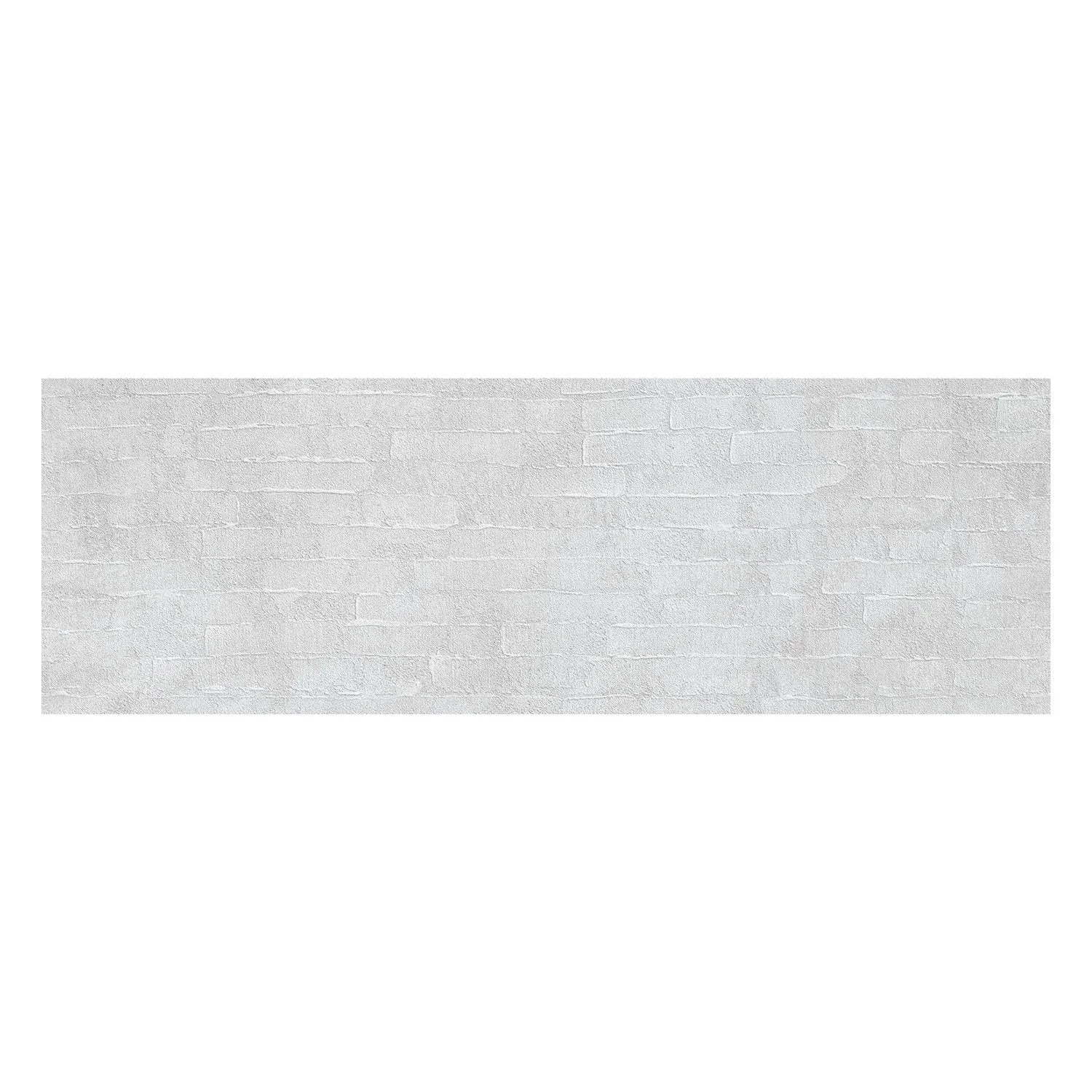

Moon Spackle
DETAILS & APPLICATIONS | 12x36 |
Size (Nominal) | 12x36 |
Size (Actual) | 11.73" x 35.35" |
Material Type | Ceramic |
Finish | Matte* |
Edge | Rectified |
Color Variation | V2 |
Printing | Inkjet |
Installation | Wall |
Usage | Residential / Commercial |
Grout Joint Recommendation | 1/8" |
Thickness | 10.40mm |
Shower Pan | No |
Pool Lining* | No |
Fireplace Surround* | Yes |
Frost Resistant | No |
TEST RESULTS | |
Water Absorption (C373) | > 10% |
Breaking Strength (C648) | N/A |
Surface Abrasion (MOHS) | N/A |
Chemical Resistance (C650) | Resistant |
D.C.O.F. (A137.1) | N/A |
Scratch Hardness (P.E.I) | N/A |
*Ivory Bevel in matte / glossy mix
Variations in shade, texture and edge profile are inherent in all glass, ceramic, porcelain and stone tiles. Always inspect product prior to installation.
Large format and rectangular wall tile require specific attention during installation. In view of ANSI and manufacturing tolerances, it is understood that no more than 33% offset should be used for installation.
*Proper installation methods must be followed per project. Please reference TCNA for more information.
Sales Sheet

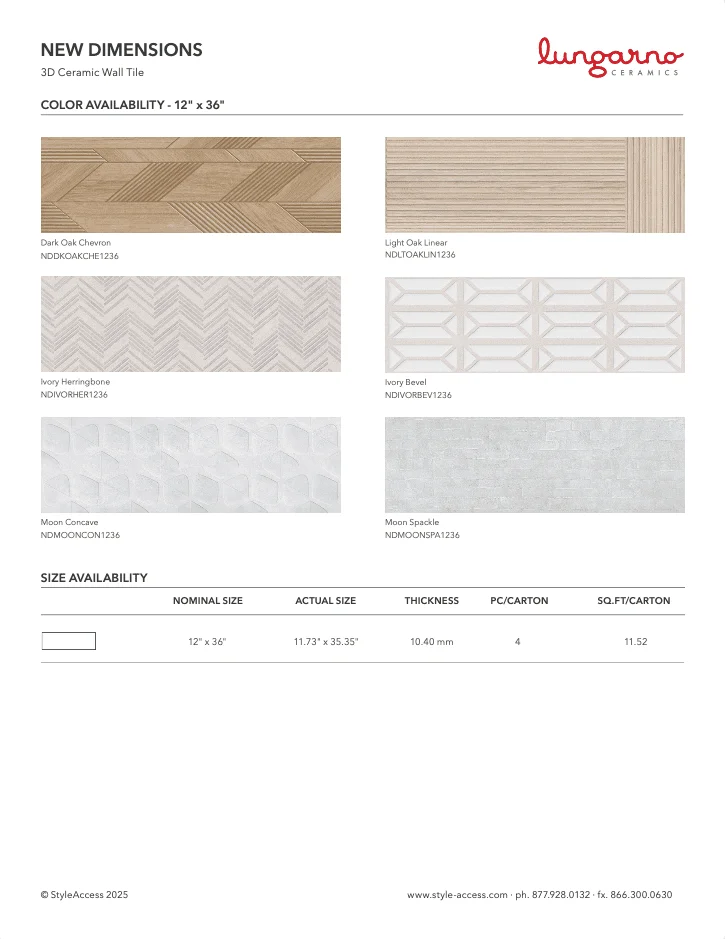

Fact Sheet
