MASSA MARBLE

Ceramic Wall & Porcelain Floor Tile

About Massa Marble

Inspired by the natural landscapes that make up much of the Tuscan region, MASSA MARBLE provides a marble-look tile, reinvented. The two traditionally-sized wall tiles give an organic, natural feel, while the floor formats add rich details that draw you closer. Use them together, or use them alone; there is no wrong choice.

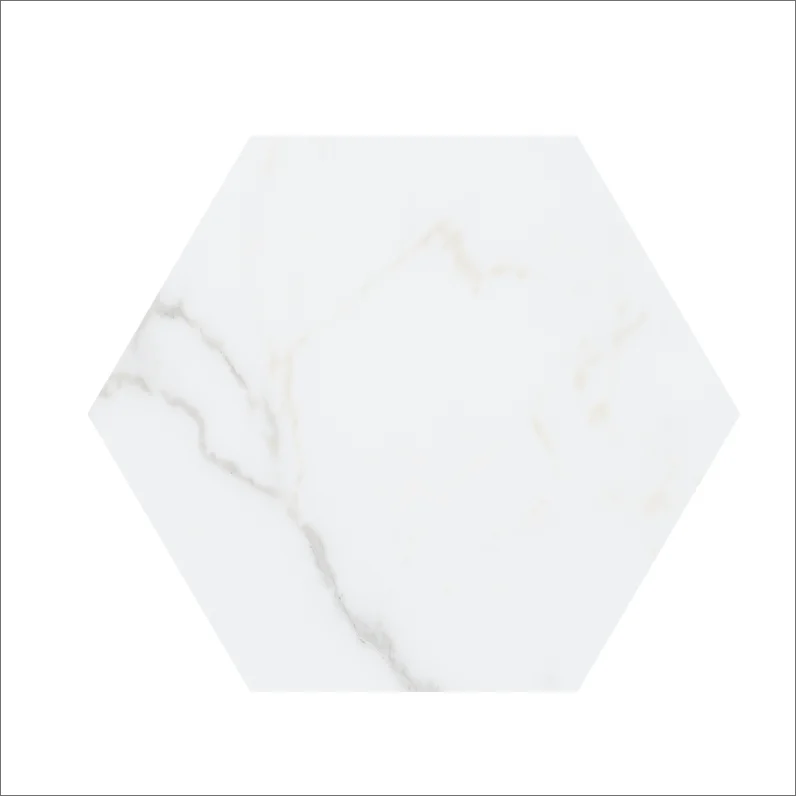

Carrara 9x10 Hexagon

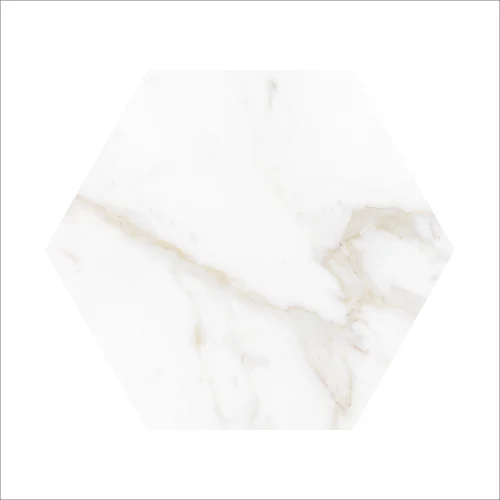

Calacatta Oro 9x10 Hexagon

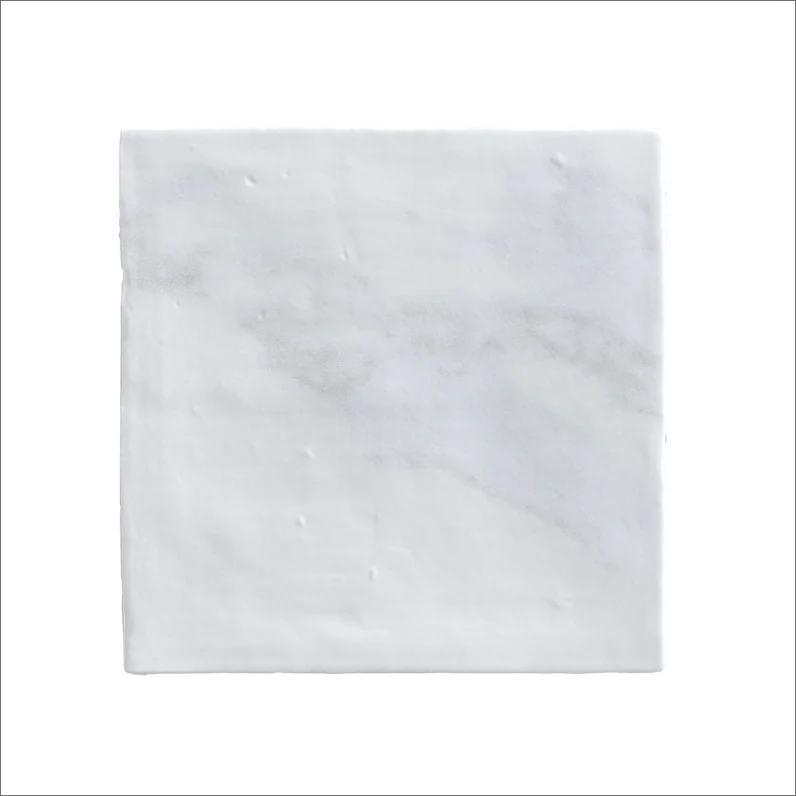

Carrara 6x6

Notting Hill 8x8

Carrara 3x6

Calacatta Oro 6x6

Notting Hill 8x8

Calacatta Oro 3x6

Carrara 3x6 Bullnose

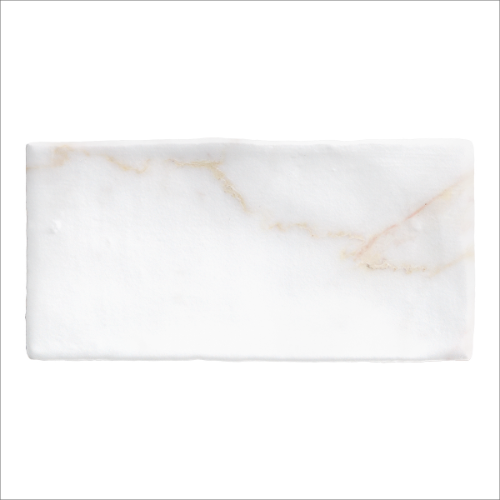

Calacatta Oro 3x6 Bullnose





DETAILS & APPLICATIONS

FLOOR - 32x32

FLOOR - HEXAGON

WALL

Size (Nominal)

32" x 32"

9" x 10"

3" x 6"
6" x 6"
Size (Actual)
31.50" x 31.50"
9.13" x 10.5"
2.95" X 5.97"
5.97" x 5.97"

Material Type

Glazed Porcelain

Glazed Porcelain

Ceramic
Finish
Matte
Matte
Matte
Edge

Rectified

Pressed

Pressed

Color Variation

V3

V3
V3

Printing

Digital

Digital

Digital

Installation

Wall / Floor

Wall / Floor

Wall

Usage

Residential / Commercial

Residential / Commercial

Residential / Commercial

Grout Joint Recommendation

1/8"

3/16"

1/8"

Thickness

3/8"

5/16"

3/8"

Shower Pan

Yes

Yes

No

Pool Lining*

No

No

No

Fireplace Surround*

Yes

Yes

Yes

Frost Resistant
Yes

Yes

No

TEST RESULTS



Water Absorption (C373)

< 0.5%
< 0.5%
> 7.0%

Breaking Strength (C648)

≥ 250 LBS
≥ 250 LBS
N/A

Surface Abrasion (MOHS)

7.0
7.0
N/A

Chemical Resistance (C650)

Resistant

Resistant

Resistant

D.C.O.F. (A137.1)
≥ 0.42
≥ 0.42
N/A

Scratch Hardness (P.E.I)

4
4
N/A

Variations in shade, texture and edge profile are inherent in all glass, ceramic, porcelain and stone tiles. Always inspect product prior to installation.

Large format and rectangular wall tile require specific attention during installation. In view of ANSI and manufacturing tolerances, it is understood that no more than 33% offset should be used for installation.

*Proper installation methods must be followed per project. Please reference TCNA for more information.

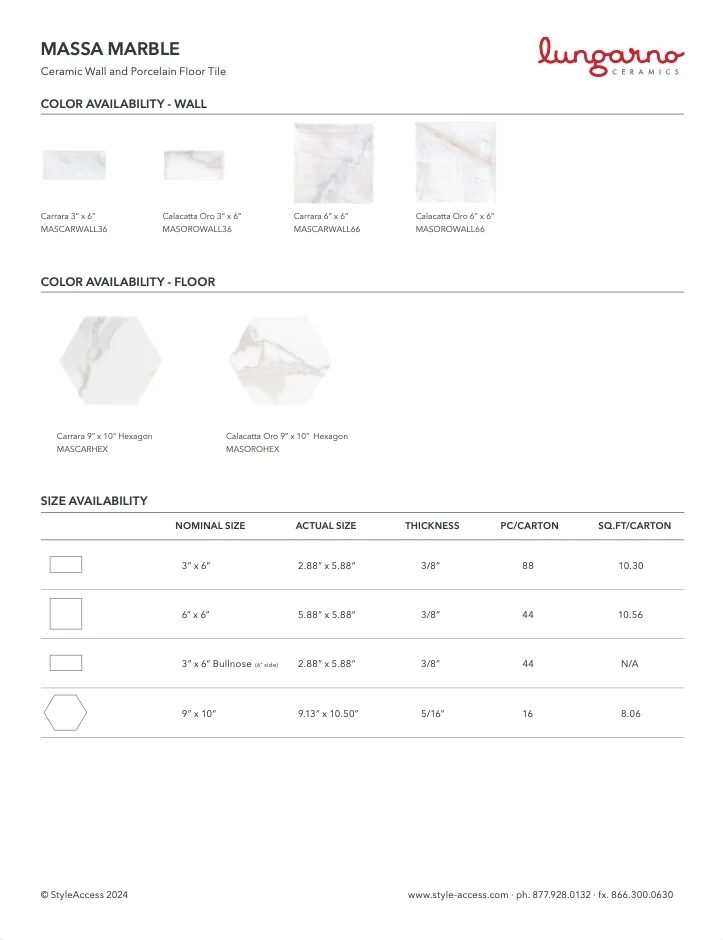

Sales Sheet

Fact Sheet

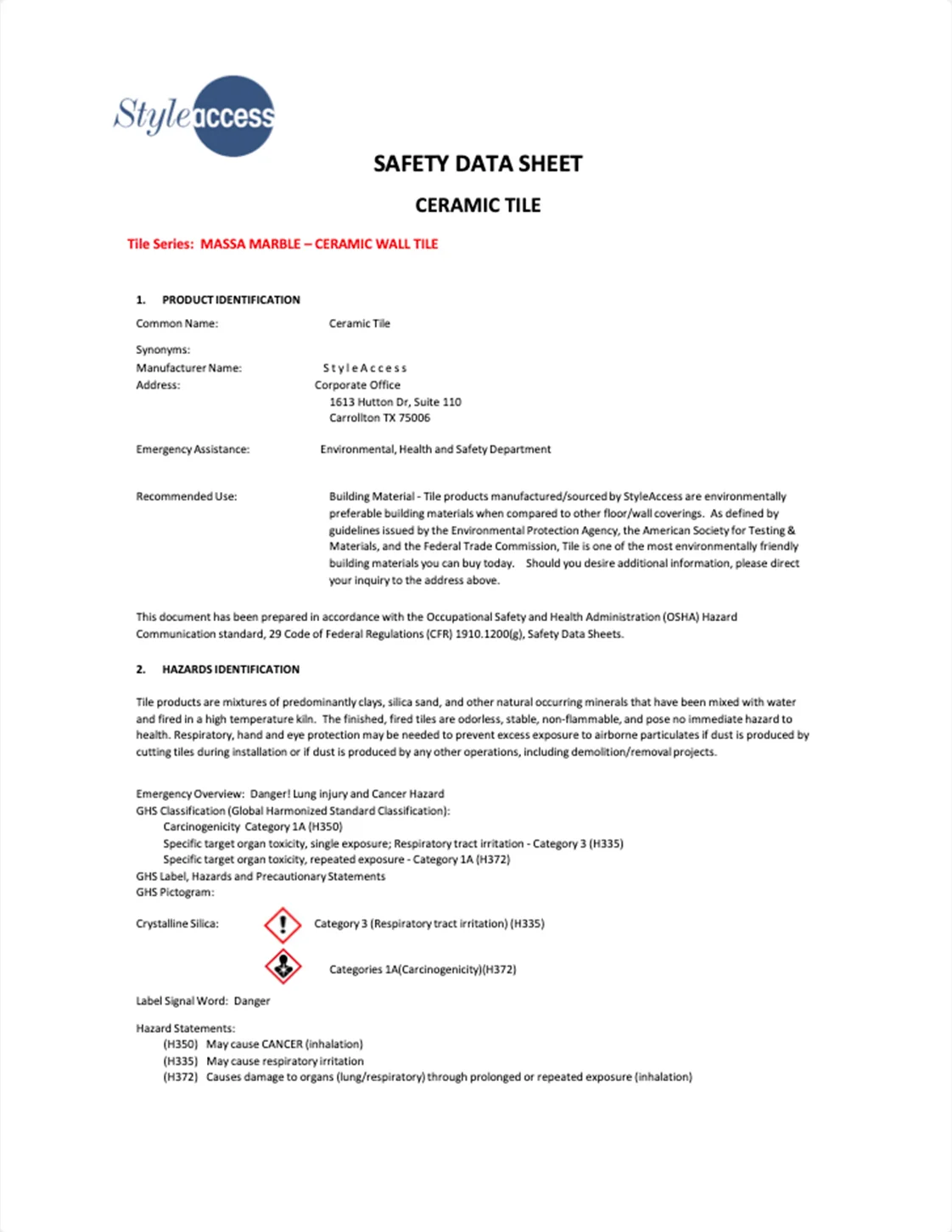

MSDS - Ceramic
